Powerful Performance in a Compact Design
The NanoPi M5 raises the bar for single-board computers, blending robust performance with a compact form factor. Designed around the cutting-edge Amlogic S905X3 chip, this device ensures lightning-fast processing and smooth multitasking for even the most demanding applications. Thanks to its quad-core 64-bit Cortex-A55 CPU and Mali-G31 GPU, it delivers exceptional efficiency and responsiveness. Whether you’re coding, running AI models, or building a media center, this lightweight powerhouse guarantees superior results.
Next-Level Versatility for Endless Possibilities
Flexibility is at the heart of the NanoPi M5. Equipped with multiple interfaces, including USB 3.0 ports, HDMI 2.1, and eMMC storage support, it offers a range of options to suit diverse needs. Whether you’re integrating it into IoT solutions or using it for education and STEM projects, this board adapts seamlessly to your goals. Its built-in Gigabit Ethernet ensures ultra-fast, stable connections, while the support for open-source operating systems like Linux and Android further enhances its adaptability.
Nanopi M5 S905X3: Built for Innovation
FriendlyELEC has embedded the potent Amlogic S905X3 at the core of the NanoPi M5 to cater to tech enthusiasts seeking unparalleled performance. From creating compact DIY servers to automating smart devices, its robust architecture ensures smooth execution. The extra RAM and fast NVMe SSD support let you tackle high-performance tasks effortlessly. Developers, makers, and hobbyists will appreciate how this model unleashes their creativity while tackling the challenges of modern project demands.
Energy-Efficient and Future-Ready Technology
The NanoPi M5 doesn’t just pack raw power—it’s optimized for energy efficiency, ensuring lower power consumption even during intense workloads. This sustainable approach extends the lifespan of your projects and reduces costs in the long run. Built with the future in mind, the board supports 8K video decoding, advanced connectivity features, and expandable hardware options. By choosing the NanoPi M5, you’re investing in a scalable, future-proof solution that evolves as your requirements do.

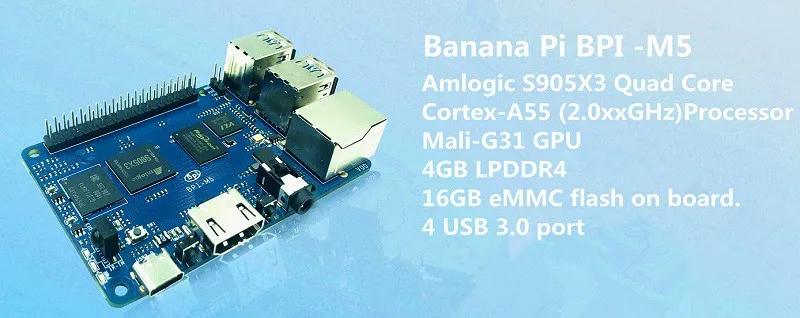

Key Features
- Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz) Processor
- Mali-G31 GPU
- 4GB LPDDR4
- 16GB eMMC flash on board.
- 4 USB 3.0 port
- 1 GbE LAN por
- HDMI output
Getting Start
Hardware

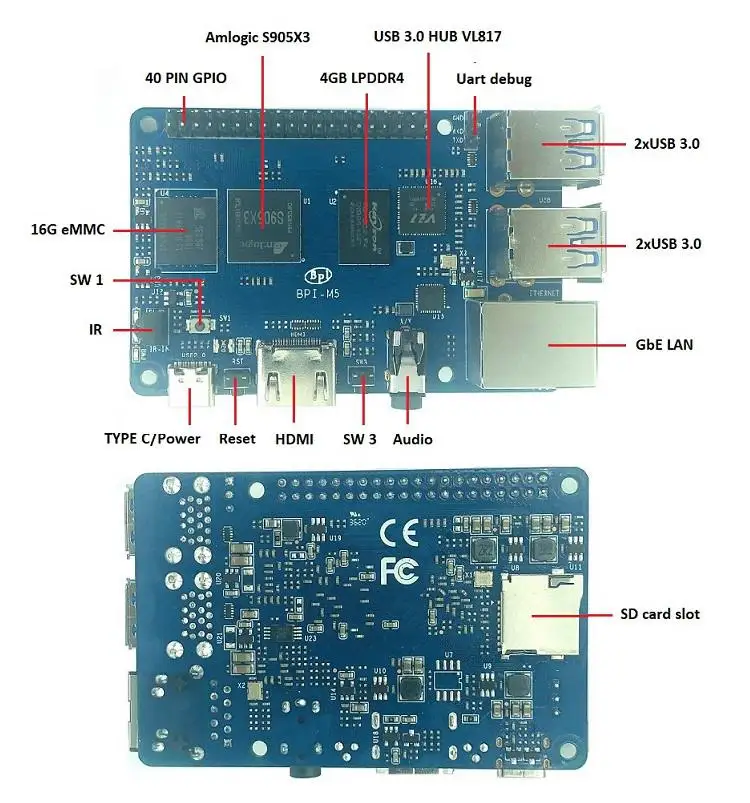

Hardware interface
Hardware spec
| HardWare Specification of Banana pi BPI-M5 | |||
| CPU | Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz) | ||
| GPU | Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz) | ||
| Memory | 4 GB LPDDR4 | ||
| Storage | MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB | ||
| Network | 10/100/1000 Mbit/s Ethernet ,Optional WiFi USB dongle | ||
| Video Output(s) | 1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID) | ||
| Audio Output(s) | 3.5mm jack and 1 x HDMI digital output | ||
| USB ports | USB 3.0 PORT (x4) | ||
| GPIO | 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM | ||
| Switches | Reset, Power and U-boot | ||
| LED | Power Status and Activity status | ||
| Power Source | 5 volt @3A via Micro USB (TYPE C) | ||
| Size & Weight | 92x60mm, 48g | ||
| OS | Android and Linux | ||
