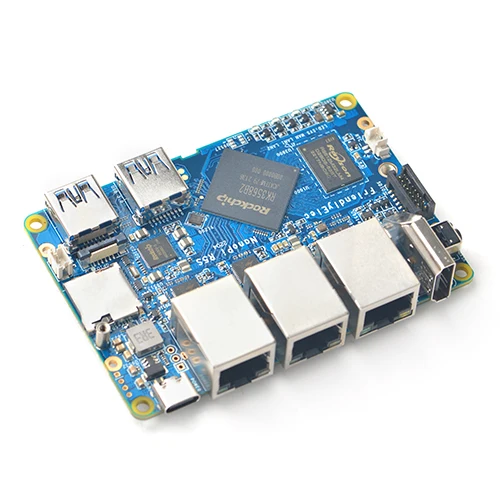

Introduction
- The NanoPi R5S is a RK3568 SoC based ARM board.
2 Hardware Spec
- SoC: Rockchip RK3568
- CPU: Quad-core ARM Cortex-A55 CPU, up to 2.0GHz
- GPU: Mali-G52 1-Core-2EE，supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile
- VPU: 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder
- NPU: Support 0.8T
- RAM: 2GB LPDDR4X
- Flash: 8GB eMMC
- Ethernet: one Native Gigabit Ethernet, and two PCIe 2.5G Ethernet
- USB: two USB 3.0 Type-A ports
- HDMI:
- support HDMI1.4 and HDMI2.0 operation
- support up to 10 bits Deep Color modes
- support up to 1080p@120Hz and 4096×2304@60Hz
- support 3-D video formats
- PCIe: M.2 Key M, PCIe2.0 x1, support NVME, PCIe WiFi etc
- microSD: support UHS-I
- GPIO:
- 12-pin 0.5mm FPC connector
- up to 1x SPI, up to 3x UARTs, up to 4x PWMs, up to 8x GPIOs
- SD/MMC/SDIO/I2S:
- 2×8-pin 1.27mm connector
- Compatible with SDIO3.0 protocol
- Compatible with SD3.0, MMC ver4.51
- 4bits data bus widths
- 1x I2S with 2x SDO and 3x SDI
- Debug: one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps
- LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN1, LAN2)
- others:
- 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
- MASK KEY for eMMC update
- one 5V Fan connector
- Power supply: USB-C, support PD, 5V/9V/12V input
- PCB: 8 Layer, 62x90x1.6mm
- Ambient Operating Temperature: 0℃ to 70℃

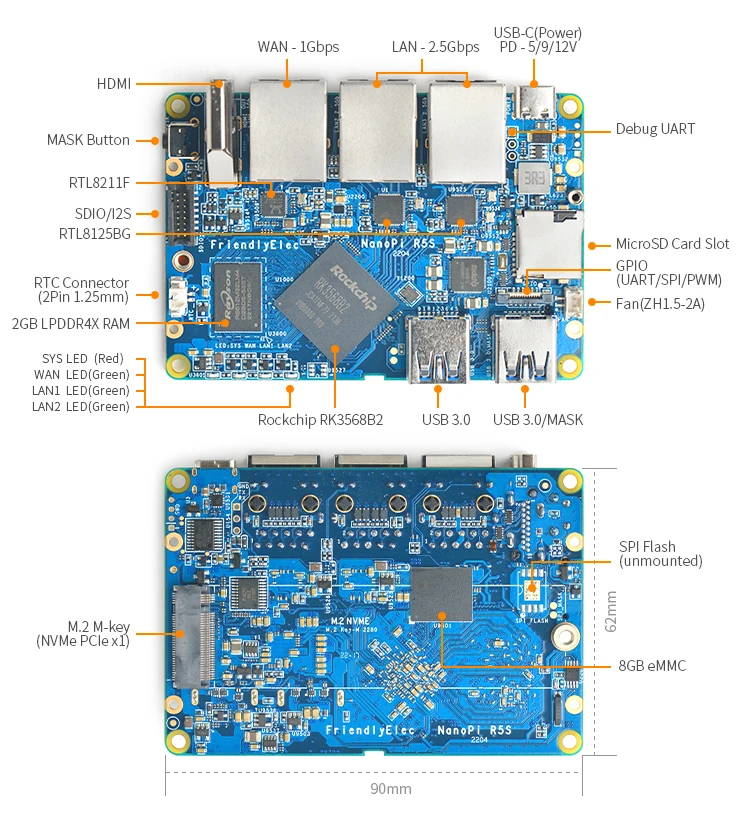

3 Diagram, Layout and Dimension

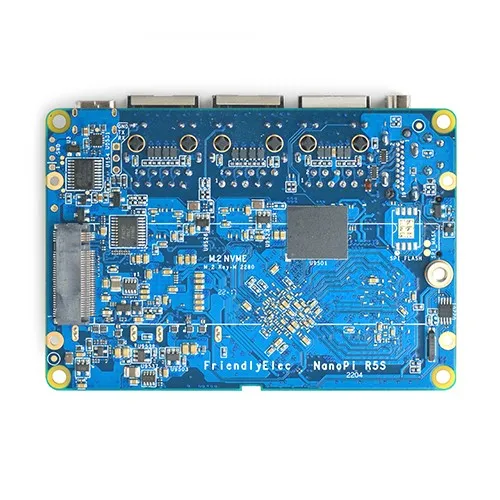

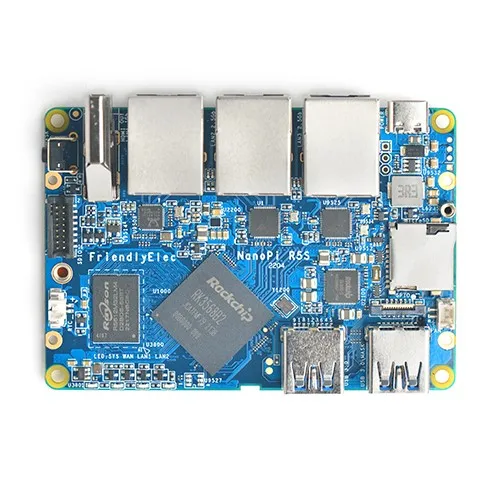

3.1 Layout
- 12-pin GPIO
| Pin# | GPIO | SPI | UART | PWM | POWER | Description |
| 1 | VCC3V3_SYS | 3.3V power output | ||||
| 2 | VCC3V3_SYS | 3.3V power output | ||||
| 3 | GPIO3_C3 | SPI1_CLK_M1 | UART5_RX_M1 | 3.3V level | ||
| 4 | GND | |||||
| 5 | GPIO3_C2 | SPI1_MISOI_M1 | UART5_TX_M1 | 3.3V level | ||
| 6 | GPIO3_A1 | SPI1_CS0_M1 | 3.3V level | |||
| 7 | GPIO3_C1 | SPI1_MOSI_M1 | 3.3V level | |||
| 8 | GND | |||||
| 9 | GPIO4_C5 | UART9_TX_M1 | PWM12_M1 | 3.3V level | ||
| 10 | GPIO4_C6 | UART9_RX_M1 | PWM13_M1 | 3.3V level | ||
| 11 | GPIO3_C4 | UART7_TX_M1 | PWM14_M0 | 3.3V level | ||
| 12 | GPIO3_C5 | UART7_RX_M1 | PWM15_IR_M0 | 3.3V level |
- 2×8-pin SDIO/I2S
| Pin# | GPIO | SD/MMC/SDIO | I2S | POWER | Description |
| 1 | VCC5V0_SYS | 5V power output | |||
| 2 | VCC5V0_SYS | 5V power output | |||
| 3 | GPIO3_C6 | SDMMC2_D0_M0 | I2S1_MCLK_M1 | 1.8V level | |
| 4 | GPIO3_C7 | SDMMC2_D1_M0 | I2S1_SCLK_TX_M1 | 1.8V level | |
| 5 | GND | ||||
| 6 | GND | ||||
| 7 | GPIO3_D0 | SDMMC2_D2_M0 | I2S1_LRCK_TX_M1 | 1.8V level | |
| 8 | GPIO3_D3 | SDMMC2_CLK_M0 | I2S1_SDI1_M1 | 1.8V level | |
| 9 | GND | ||||
| 10 | GND | ||||
| 11 | GPIO3_D1 | SDMMC2_D3_M0 | I2S1_SDO0_M1 | 1.8V level | |
| 12 | GPIO3_D2 | SDMMC2_CMD_M0 | I2S1_SDI0_M1 | 1.8V level | |
| 13 | GND | ||||
| 14 | GND | ||||
| 15 | GPIO3_D5 | SDMMC2_PWREN_M0 | I2S1_SDI3_M1 | 1.8V level | |
| 16 | GPIO3_D4 | SDMMC2_DET_M0 | I2S1_SDI2_M1 | 1.8V level |
- Debug UART Pin Spec
3.3V level signals, 1500000bps
| Pin# | Assignment | Description |
| 1 | GND | 0V |
| 2 | UART2DBG_TX | output |
| 3 | UART2DBG_RX | intput |
- USB Port
Each USB 3.0 port has 1.4A overcurrent protection.
- RTC
RTC backup current is 0.25μA TYP (VDD =3.0V, TA =25℃).Connector P/N: Molex 53398-0271
